MULTI-SURFACE SUSPENSION TRAINER MOUNT
One Mounting Platform.
Configured Around the Application.

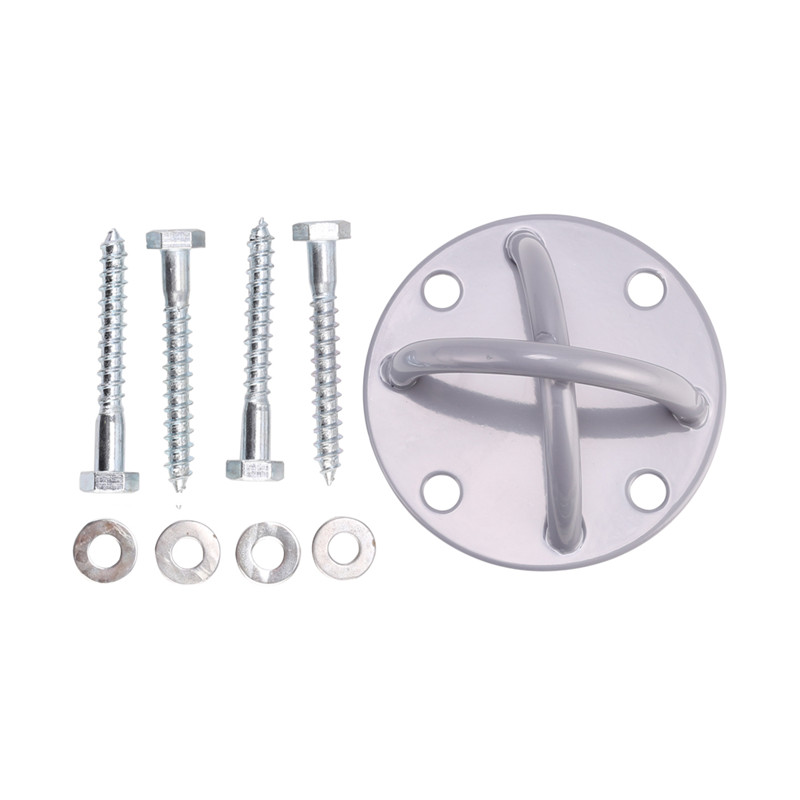

The Multi-Surface Suspension Trainer Mount uses a four-hole steel mounting plate as a flexible hardware platform for suspension, resistance and functional-training systems.
Different installation environments can require different fastening configurations. For this reason, the mounting plate, fasteners and equipment connection should be considered together as one system.
ZJSD can use this structure as a starting point or help develop a completely different mounting fixture around your product concept.
PRODUCT TYPE
Suspension Training Mount
MATERIAL
Steel
PLATE
Four-Hole Configuration
FASTENERS
Configurable by Installation Requirement
CUSTOMIZATION
Geometry · Holes · Connection · Fasteners · Finish
PROJECT TYPE
Private Label · OEM · ODM
MOUNTING SYSTEM DEVELOPMENT
Don’t Choose the Fastener
Before Understanding the Surface.
Wood, concrete, masonry and other installation conditions should not automatically use the same fastening solution. The intended substrate needs to be understood before the final mounting configuration is defined.
→ FASTENER
→ PLATE
→ ANCHOR
→ EQUIPMENT
THE ANCHOR AND THE FASTENERS ARE PART OF THE SAME SYSTEM.
CUSTOM HARDWARE DEVELOPMENT
Change the Existing Structure.
Or Start Again.
PLATE GEOMETRY
Round, square or project-specific structures.
MOUNTING HOLES
Customize quantity, spacing and layout.
ANCHOR DESIGN
Develop attachment geometry around the equipment.
FASTENER SET
Configure hardware according to installation requirements.
FINISH
Develop coating, color and appearance.
NEW DESIGN
Create new mounting hardware around your product concept.
YOUR DESIGN COMES FIRST
We Don’t Want the Hardware
to Limit the Product.
The mounting hardware should follow the logic of the training system. If an existing anchor compromises the intended connection, installation or appearance, the better solution may be to modify the hardware or develop a new structure.
ZJSD can work with the designer to turn the original mounting concept into a manufacturable metal component.
THE GOAL IS NOT TO MAKE YOUR DESIGN FIT OUR HARDWARE.
THE GOAL IS TO DEVELOP HARDWARE THAT FITS YOUR DESIGN.
DEVELOPMENT PROCESS
From Requirement
to Production.
→ INSTALLATION REQUIREMENT
→ HARDWARE STRUCTURE
→ FASTENER CONFIGURATION
→ SAMPLE
→ PRODUCTION
HAVE A DIFFERENT MOUNTING IDEA?
Show Us the Product.
We’ll Discuss the Hardware.
Send your drawing, reference, sample or equipment concept. We can discuss the mounting structure and manufacturing direction around the original design.
