SUSPENSION TRAINER CONCRETE MOUNT
Mounting Hardware Developed
Around the Installation Surface.

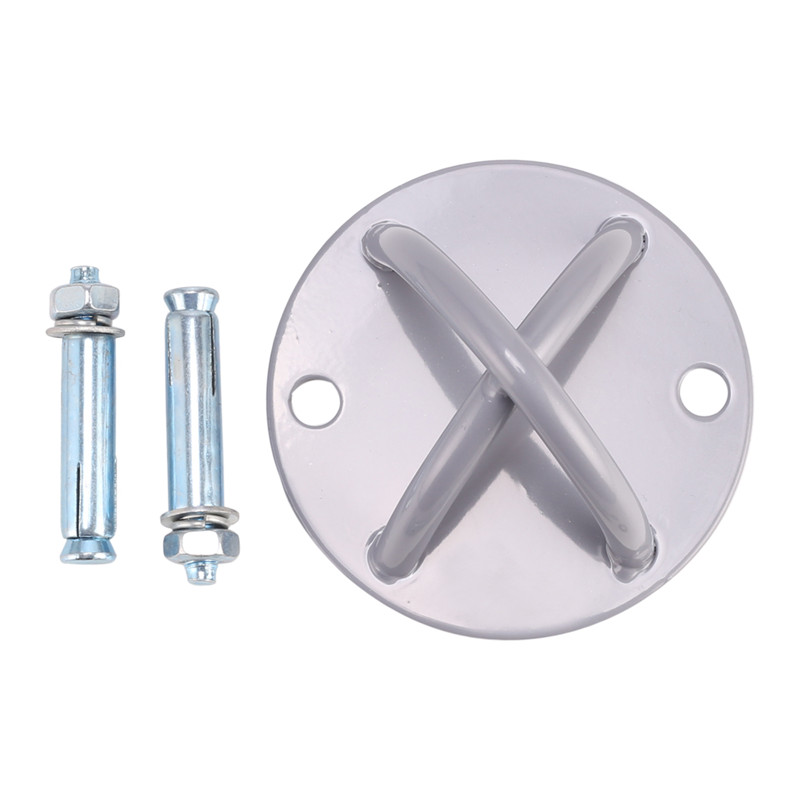

The Suspension Trainer Concrete Mount is a welded steel mounting fixture shown with a two-hole plate and expansion fasteners for suitable solid concrete or masonry installation conditions.
It can provide a fixed connection point for suspension trainers, gym rings, resistance systems and other functional or bodyweight-training equipment.
For OEM and ODM projects, the anchor geometry, mounting plate, hole layout, connection structure and fastening system can be developed together around the intended equipment and installation environment.
INSTALLATION SYSTEM
Different Surfaces Require
Different Fastening Solutions.
The anchor plate and fasteners should not be treated as unrelated components. The intended installation substrate influences the fastening direction and therefore needs to be considered when defining the complete mounting system.
BEYOND STANDARD HARDWARE
The Existing Anchor
Is Only a Starting Point.
The product shown here represents one possible mounting solution. Your project is not limited to this plate diameter, two-hole layout, anchor shape or fastening configuration.
ZJSD can help develop a new metal fixture around your training equipment, installation concept and intended connection method.
THE GOAL IS NOT TO MAKE YOUR DESIGN FIT OUR HARDWARE.
THE GOAL IS TO DEVELOP HARDWARE THAT FITS YOUR DESIGN.
CUSTOM METAL HARDWARE
Design the Complete
Mounting Structure.
PLATE SIZE & SHAPE
Develop dimensions and geometry around the project.
HOLE PATTERN
Configure mounting-hole quantity and positioning.
ANCHOR STRUCTURE
Develop welded connection geometry around the equipment.
FASTENERS
Configure fastening hardware around the intended substrate.
SURFACE FINISH
Coordinate coating and appearance with the training system.
NEW HARDWARE
Develop a new fixture instead of modifying an existing model.
DESIGNED AROUND YOUR PRODUCT
Preserve the Designer’s
Original Product Intent.
A mounting fixture should support the intended function of the training product rather than force the product designer to compromise around an available off-the-shelf component.
→ CONNECTION REQUIREMENT
→ INSTALLATION CONDITION
→ HARDWARE DESIGN
→ SAMPLE
→ PRODUCTION
DEVELOP THE HARDWARE AROUND THE PRODUCT — NOT THE PRODUCT AROUND THE HARDWARE.
FROM IDEA TO HARDWARE
You Don’t Need a Finished
Hardware Drawing to Start.
Send us a drawing if you already have one. If not, a sample, reference photo or explanation of how your training product is intended to connect and install can be used as the starting point for discussion.
CUSTOM MOUNTING PROJECT
Tell Us Where It Mounts.
And What It Needs to Connect.
ZJSD can help translate your installation and connection requirements into manufacturable custom metal hardware.
